Parse CSV to Resource

The Parse CSV to Resource job parses CSV-formatted text provided in the Csv source field. The source can be either:

• A direct CSV string input
• A reference to an existing resource (e.g., incoming message data or metadata)

If parsing succeeds, a CSV Resource is created in the workflow context and can be accessed in subsequent jobs.

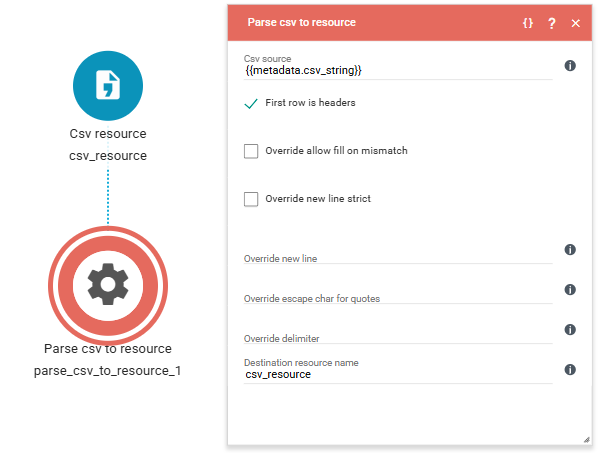

Properties

Below is a complete description of all configurable fields.

1. Csv Source (Input)

A value containing CSV-formatted text. This can be:

• A static CSV string header1,header2 row1,row2
• A dynamic reference to a resource or metadata, for example: {{incoming_message.body}}

2. Parse First Row as Headers (Checkbox)

Enable this option if the CSV contains a header row.

When enabled:

• The first row will be interpreted as column headers.
• Headers can be referenced by name in later expressions.

If disabled:

• All rows are treated strictly as data rows.

3. Override Allow Fill on Mismatch (Checkbox)

If enabled:

• Rows with fewer columns than expected will be automatically padded with empty values.

If disabled:

• The job will fail and throw an error if any row contains a mismatched number of columns.

Use this setting when working with inconsistent or partially structured CSV data.

4. Override New Line Strict (Checkbox)

When enabled:

• The override newline setting will only accept a single-character value.

This ensures strict parsing behavior when customizing row separation.

5. Override New Line

Allows you to specify a custom newline character instead of the default line break.

Use this if the CSV uses a non-standard row separator.

6. Override Escape Character for Quotes

Allows you to define a custom escape character for quoted values.

This is useful when:

• The CSV does not follow standard double-quote (") escaping conventions.
• The source system uses a different escape mechanism.

7. Override Delimiter

Allows you to define a custom field delimiter instead of the default comma (,).

Common alternatives include:

• Semicolon (;)
• Tab (\t)
• Pipe (|)

8. Destination Resource Name (Output)

Defines the name of the CSV resource that will be created in the workflow context.

Choose a descriptive name to make downstream references clear and maintainable.

Accessing Data in a CSV Resource

The examples below assume that the data is saved in a resource called “csv”.

Headers

{{csv.headers}}

Returns all headers.

{{csv.headers[0]}}

Returns the header at index position 0.

{{csv.headers.count()}}

Returns the total number of headers (columns).

Rows

{{csv.rows}}

Returns all rows.

{{csv.rows[2]}}

Returns the row at index position 2.

{{csv.rows[3].distinct()}}

Returns distinct values from row at index position 3.

Get Column

{{csv.getcolumn(xx)}}

Where xx can be either:

• The column index (e.g., 0)
• The header name (if headers are enabled), for example:

{{csv.getcolumn(firstname)}}

For a CSV structured as:

firstname,lastname
John,Doe
Jane,Smith

This function returns all values from the first column.

Other uses

These functions can also be used on a single row by extracting a single row and writing it to a separate CSV resource, or by looping over them using For Each Resource, to find the single cell value.
